Product Description

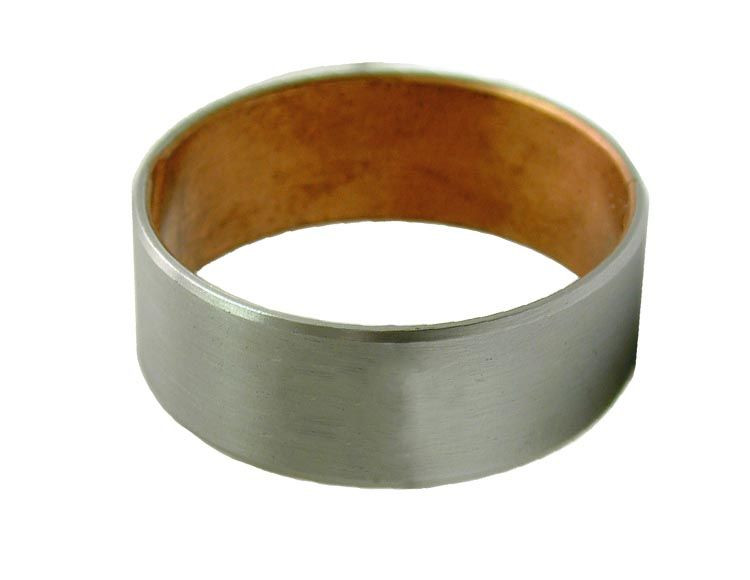

4R44E 4R55E 5R44E 5R55E 5R55N 5R55S 5R55W A4LD Bell Housing Pump Cover Bushing
Sonnax Part Number: 56001X
NOTE: Finish-in-place style bushings requires advanced machining to ensure proper ID and location after installation!
The Ford A4LD, 4R44E/55E and 5R44E/55E bell housing bushing is not separately serviced because the assembly requires the bushing to be finished in place to achieve proper I.D. dimension. The use of aftermarket pre-finished bushings may result in pump drive hub interference or pump leakages due to variation in installed I.D. Variations in the bell housing bushing bore diameter and location precludes the use of a conventional pre-finished replacement bushing. Sonnax finish-in-place bell housing/pump cover bushing 56001X replicates the OE bell housing and bushing assembly. This bushing also services finish-in-place pump cover bushings in 5R55N, 5R55W and 5R55S transmissions.
- Bushing has a steel-backed, bronze lining for better wear resistance
- Finishing in place allows for proper I.D. and location
- Works in either bell housing or pump cover location, depending on the unit
PACKAGE CONTAINS
- Bushing (5)
SYMPTOMS
- Repeat front seal leakage
- Worn pump bushing
- Worn converter hub
CAUSE
CORRECTION
The Sonnax steel-backed, bronze-lined, finish-in-place bushing replicates the OE bell housing or pump cover bushing assembly.
