Product Description

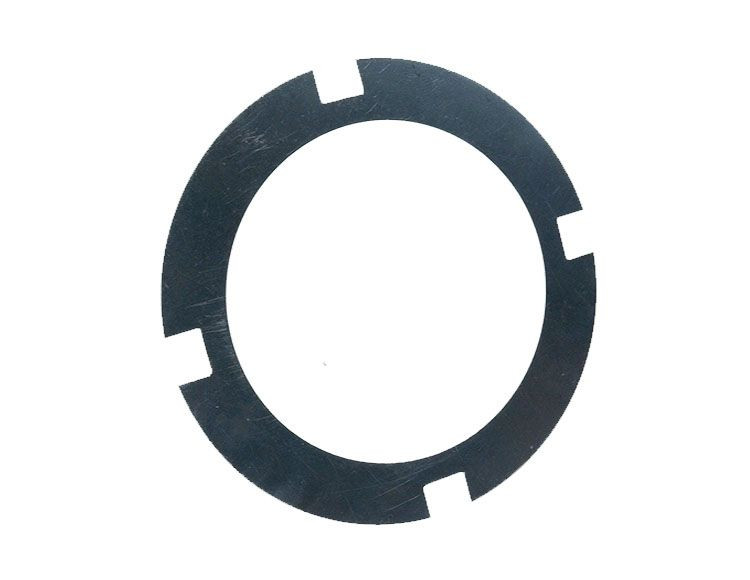

TH400 TH425 4L80E 4L85E Rear Unit Endplay Shim | 0.005'' Thick
Sonnax Part Number: 34006-05
NO TOOLING REQUIRED

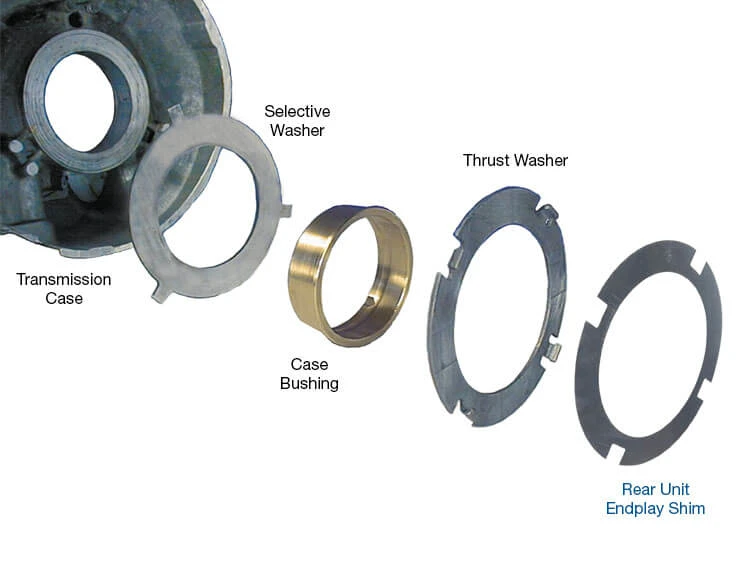

Sonnax offers two solutions for excessive endplay in GM TH400, TH425, 4L80-E and 4L85-E units. Sonnax rear unit endplay shim 34006-05 can be stacked under the four-tab metal thrust washer on the rear of the output shaft flange to set unit endplay in the same manner as the OE selective three-tab spacers. These shims eliminate the need to stock expensive or hard-to-find OE three-tab spacers and are an alternative to Sonnax shim 34500-Z. Shimming at this location maintains the stack-up height between the gear train main shaft and sun gear shaft.
- Shims allow for setting of rear unit endplay by shimming components at the same location as OE selective spacers
- Can also be used between the two carriers to optimize reaction carrier endplay
PACKAGE CONTAINS
- Shim (10)
SPECIFICATIONS
- Material: Steel
- Inner Dia.: 2.375"
- Thickness: 0.005"
- Outer Dia.: 3.250"
Product Videos
Custom Field
Requires Tooling? No
