Product Description
42RE 42RH 44RE 44RH 46RE 46RH 47RE 47RH 48RE Intermediate Plug & Pilot Kit
Sonnax Part Number: 22171A-02K
NO TOOLING REQUIRED

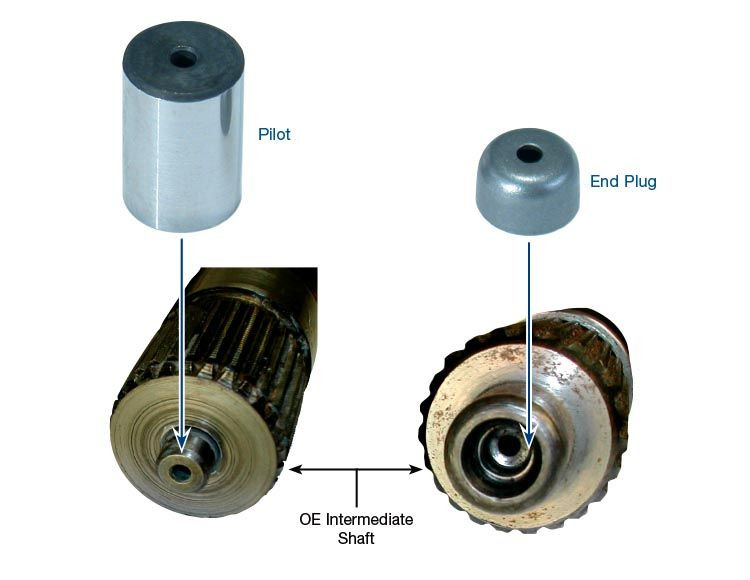

In vehicles with listed Chrysler transmissions, it is common for the overdrive section to suffer from poor lube oil control, resulting in burnt planetaries and failed bushings. One area of weakness is the intermediate shaft. Shafts are often contaminated and cleaning is difficult as it leaves the shaft unrepairable. The OE plug was generally not removed because replacements were not available or were difficult to find. Sonnax offers intermediate pilot and plug kit 22171-02K to allow the shaft to be cleaned and, equally important, improve lube control. Each kit will service five shafts.
- Sonnax pilot has a smaller orifice, resulting in more lube flow to the bushings and planetaries
- Use of the Sonnax pilot allows the salvage or conversion of early, small-diameter pilot A727 shafts to later, large-diameter applications
- Sonnax end plug allows the shaft to be cleaned, preventing post-rebuild contamination
PACKAGE CONTAINS
- End Plugs (5)
- Pilots (5)
SYMPTOMS
- Poor lube oil control
- Recontamination of new parts
- Unable to clean shaft
CAUSE
Shaft oil galley is not properly cleaned unless plugs are removed. Plugs that are left out or replaced with larger orifices decrease critical lube to planetaries.
CORRECTION
Sonnax pilot has a reduced orifice for improved lube flow, and end plug allows the shaft galley to be cleaned and a replacement plug installed.
