Product Description
42RE 42RH 44RE 44RH 46RE 46RH 47RE 47RH 48RE A727 A904 Valve Body Detent Ball & Sleeve Kit
Kit is designed to fit both the short and long OE detent bore designs. Although this fix is compatible with 48RE units, the bore diameter in some units will be smaller and mayu cause potential reamer piloting issues.
Sonnax Part Number: 22771-12K
TOOLING REQUIRED
- 22771-TL12
The detent ball in the valve body in listed Chrysler transmissions wears into the aluminum bore due to continuous movement and vibration of the linkage. This creates excessive looseness in the manual valve lever and allows the manual valve to move out of alignment. No start or being stuck in Park can occur from the manual valve being out of position due to extra clearance. This condition often requires that the valve body be replaced.

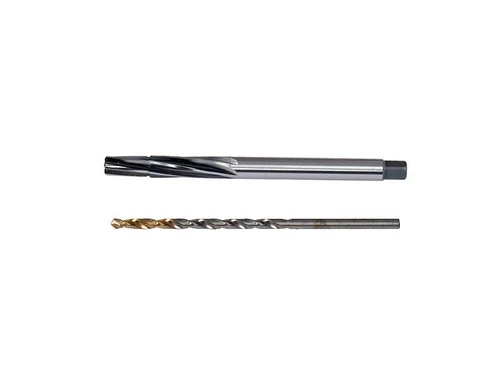

Sonnax valve body detent ball and sleeve kit 22771-12K allows the valve body to be salvaged. The bore must be oversized using the self-guiding bench reamer included in Sonnax tool kit 22771-TL12. A .096" diameter drill bit is also included to allow the retaining pin hole to be redrilled for use with the OE pin. Sonnax detent spring 22771-36 is also available.

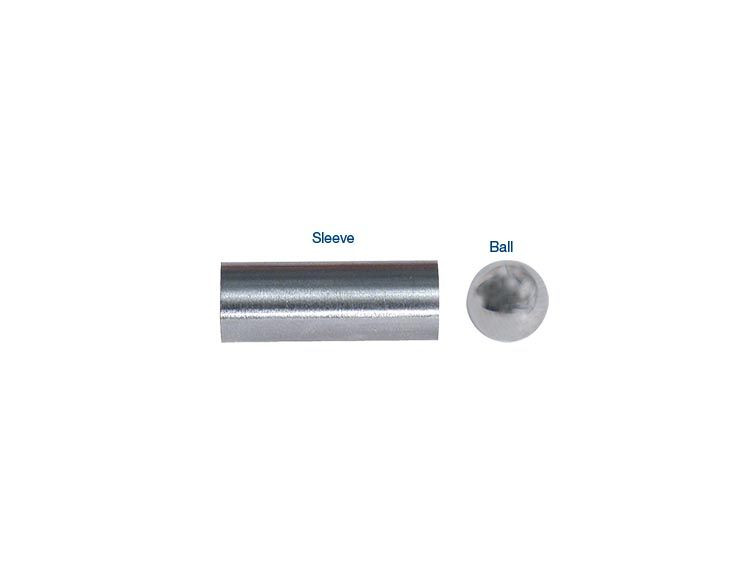

- Precision steel sleeve restores worn valve body and properly supports the detent ball
- Precision-ground steel ball included for optimal fit with the replacement sleeve
- Self-guiding bench-style reamer allows casting to be oversized quickly and accurately without specialized equipment
PACKAGE CONTAINS
- Balance Spring
- Sleeve
- Valve
- Plunger
- TV Spring Orange
- TV Spring Purple, (Performance use only)
- Spring Shims (3) (Performance use only)
SYMPTOMS
- Manual lever binds in Park position
- Damaged valve body casting
- Linkage loose
- No start
CAUSE
Continuous movement and vibration of the shift linkage causes wear to the valve body detent ball bore
CORRECTION
By oversizing the detent ball bore and installing Sonnax precision steel sleeve and replacement ball, expensive cores may be salvaged.
