Product Description
42RE 42RH 44RE 44RH 46RE 46RH 47RE 47RH 48RE A727 A904 Intermediate Accumulator Sleeve Kit
Sonnax Part Number: 22841-01K
NO TOOLING REQUIRED
Common complaints with the listed Chrysler transmissions are soft 1-2 shifts, forward clutch failure, poor line rise and delayed forward engagement caused by a worn or scored accumulator bore in the case. Sonnax intermediate accumulator sleeve kit 22841-01K repairs this bore. This kit is a drop-in solution and does not require any special machining.
- Allows the salvage of damaged cases that would otherwise have to be scrapped
- Two sleeves are included to repair both the small- and large-diameter bores
- Includes an undersized piston with seals to provide proper fit with new sleeves
PACKAGE CONTAINS
- Accumulator Piston
- Sleeve Small
- Sleeve Large

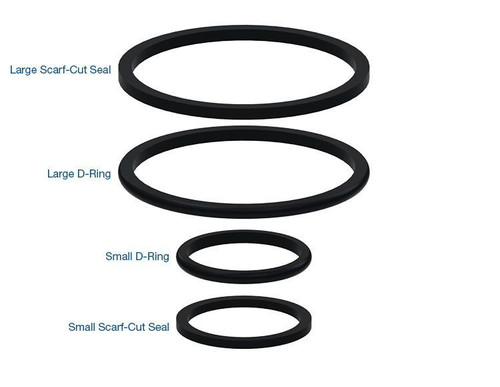

- Seal Small
- Seal Large
SYMPTOMS
- 1-2 Soft
- Delayed engagement
- Forward clutch failure
- Low line rise
CAUSE
Normal case wear from piston oscillating in bore results in loss of line pressure.
CORRECTION
Use Sonnax intermediate accumulator sleeve kit to fix the accumulator bore and save the case.
Product Videos
Custom Field
Requires Tooling No
