Product Description
Alllison 10L1000 / GM 10L60 (GEN-2) 10L80 (GEN-2) 10L90 (GEN-2) Oversized Feed Limit High Valve Kit
Sonnax Part Number: 105740-60K
TOOLING REQUIRED
- 144740-TL
- F-124740-TL48
- VB-FIX
THE OE FEED LIMIT LOW AND HIGH VALVES ARE AT HIGH RISK FOR PREMATURE WEAR AND FAILURE. REPLACE BOTH VALVES IN EVERY BUILD EVEN IF THERE IS NO TRANSMISSION PROBLEMS AND THE VALVE PASS A VACUUM TEST.
YOU CAN USE THE F-124740-TL48 WITH THE VB-FIX OR YOU CAN USE THE 144740-TL BENCH TOOL KIT IF YOU DO NOT HAVE THE VB-FIX.
The feed limit high valve in listed GM transmissions limits line pressure feed to the boost ball system for "C" and "F" clutch controls. Excessive wear in the feed limit high valve bore allows pressure leakage, which can be the source of shift problems and clutch failure.
Installing Sonnax oversized feed limit high valve kit 105740-60K corrects circuit pressures and restores proper valve functions.
- Hardcoat anodized aluminum valve combats premature wear
- Highly wear-resistant valve sleeve increases life of part
- Patented valve and sleeve combination overcomes bore wear and significantly reduces future side-loading of the valve

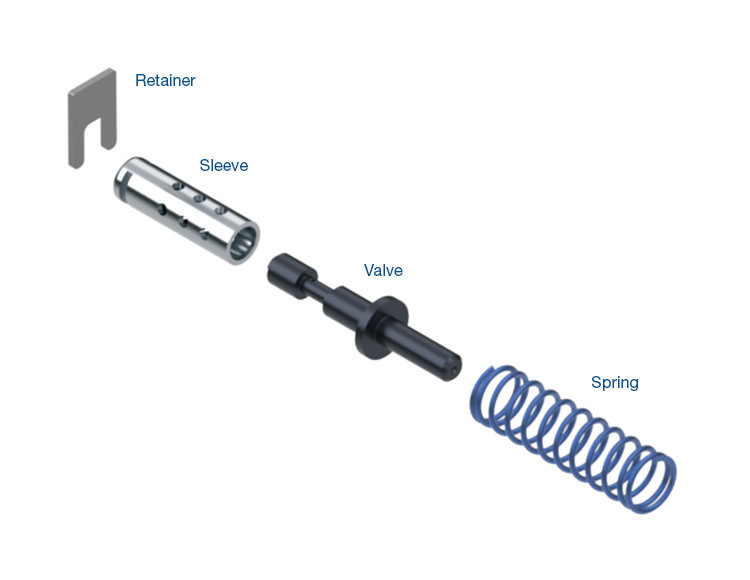

PACKAGE CONTAINS
- Valve
- Sleeve
- Spring
- Retainer
- Drill Not Shown
- Rivet Not Shown
SYMPTOMS
- No shift
- Burnt clutches
- Clutch failure
CAUSE
Excessive wear in the feed limit high valve bore allows pressure loss that causes clutch failure and shifting concerns.
CORRECTION
Reconditioning the bore and installing Sonnax oversized feed limit high valve kit overcomes bore wear, restores proper valve function and prevents future wear occurrence.
