Product Description
01M 01N 01P Valve Body Shift Cup Kit
Sonnax Part Number: 119940-11
NO TOOLING REQUIRED
WARNING: FOR 1998 AND LATER, THE OE K1 ACTUATOR VALVE SHIFT CUT IS SOLID AND NOT DRILLED THROUGH. DO NOT USE THE SONNAX SMALL SHIFT CUP (119940-11) IN THIS VALVE BORE. INSTEAD, REUSE THE OE SHIFT CUP. 1997 AND EARLIER UNITS WILL USE THE SMALL SONNAX SHIFT CUT AT THE K1 ACTUATOR BORE.

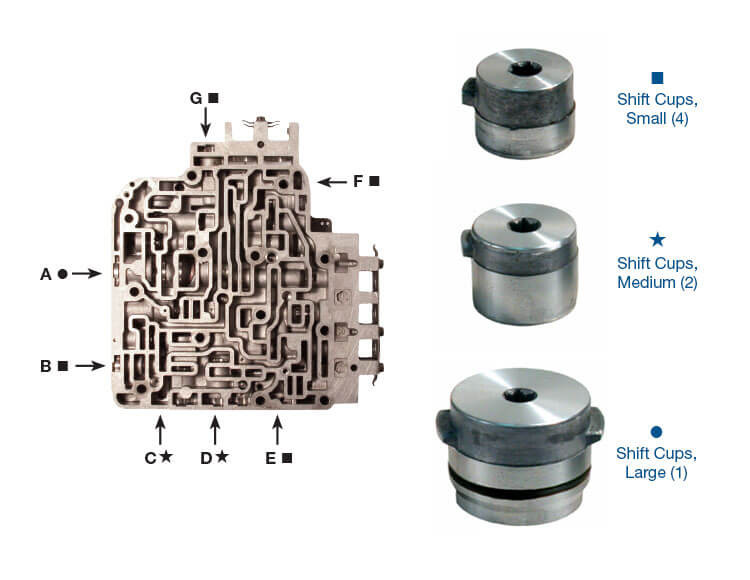

Sonnax offers shift cup kit 119940K for VW/Audi 01M, 01N and 01P units. These are drop-in replacements for the OE shift cups, and are made from die-cast aluminum for a long-lasting solution. Small, medium and large shift cups are available separately, or as kit 119940K, which includes the following:
(2) Medium shift cups located at 3-4 regulator valve and 2-3 regulator valve.
(4) Small shift cups located at B2 actuator valve, K1 actuator valve (see Warning above), K-1 cushion valve and K3 manual low valve.
(1) Large shift cup located at main pressure regulator valve.
- Made from die-cast aluminum for longer life
- No modifications to valve body required
- Drop-in Zip Valve™ parts install quickly and easily
PACKAGE CONTAINS
- Shift Cups (2) Medium
- Shift Cups (4) Small
- Shift Cup Large
- O-Ring
SPECIFICATIONS
- Material: Aluminum
SYMPTOMS
- Broken end plugs
- No shift
- Uncontrolled shifts
CAUSE
CORRECTION
